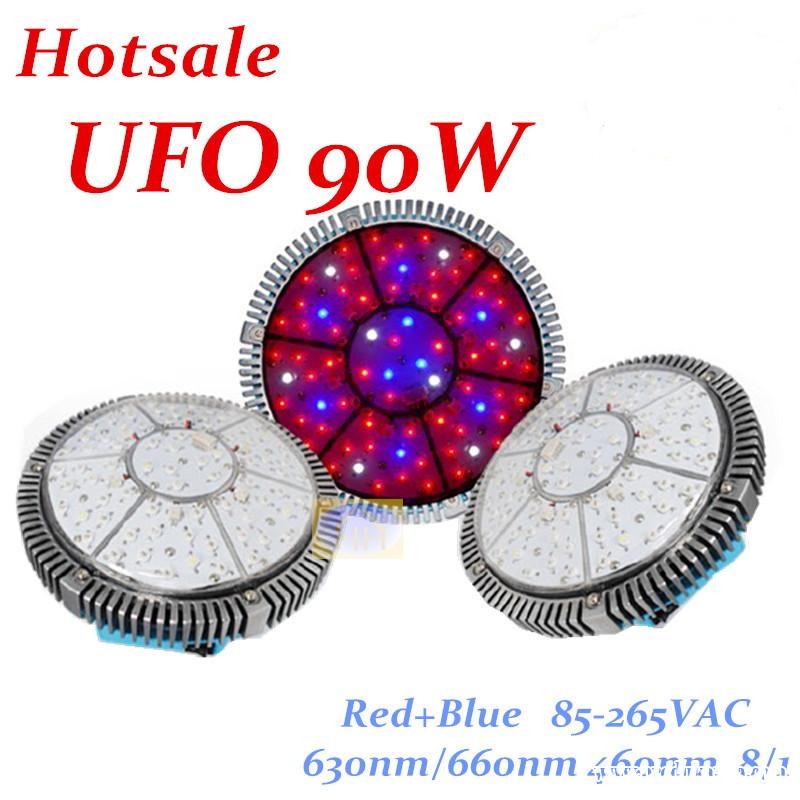

90W UFO led grow light Specification
|
Specification |
|||
|
Name |
90W LED Grow Light |
Actual power |
85~95W |
|
Model |
TR-UFO-90W |
LED Qty |
48pcs*3W |
|
Input voltage |
AC100~240V |
LED color |
Red(630nm)/Blue(460nm) |
|
Output voltage |
DC55~70V |
Lifespan |
50,000 Hours |
|
Input current |
670~700mA |
Working frequency |
50~60Hz |
|
PF |
0.9 |
Working environment |
-20~40°C,45%~95%RH |
|
Product size |
260*136mm |
N.W. |
2.86kg |
|
Inner carton size |
290*290*180mm |
G.W.(Inner carton ) |
3.3kg |
|
Outer carton size |
590*300*370mm |
G.W.(Outer carton ) |
14.05kg |
|
Standard configuration |
LED Light x1,Power line x1,Chaining x2 |
||
|
Remarks |
The above parameter is based on Red:Blue=8:1, for reference only |
||
|
Illumination and PAR value data sheet |
|||||||
|
Height(cm) |
20 |
40 |
60 |
80 |
100 |
150 |
200 |
|
PAR (umol m-2s-l) |
580 |
170 |
83 |
50 |
32 |
14 |
8 |
|
Illumination(lux) |
15080 |
4880 |
2880 |
1335 |
816 |
380 |
221 |
|
Irradiation Area(M2) |
9.62 |
14.51 |
18.84 |
22.21 |
22.38 |
28.26 |
34.19 |
(Remarks: the irradiation area is base on PAR value>10 )
Characteristics:
1. Use plastic and die casting aluminum shell, 1, Antirust and antiseptic 2, Elegant appearance and beautiful in colour 3. Reducing the weight of the whole light 4, Stable afety performance
2. Use the patented double cavity coolingstructure; 1, The thermal radiation properties is increased by 50% 2. Effectively prevent the greenhouse effect in the lamp 3, Due to the good heat dissipation structure design, make the lamp can run smoothly under 700mAcurrenthigh-power, created the miracle in the industry, greatly improve the effective utilization rate of the LED, fully improve the cost performance, reducing 60%decibels of the fan noise.
3. Unique back shell air intake design is our company's patent design, created the waterproof and dustprooffan heat dissipation lamps ,thus developed using the fan heat dissipation.
4. The whole lamp circuit use plug connection, the lamp board and power supply respectively in the transparent cover and the backshell,more convenient and simple for maintenance.
5. Useadvanced isolation power supply and soft start protection technology, to prevent the high voltage when turn on the light fromdamaging the lamp body.
